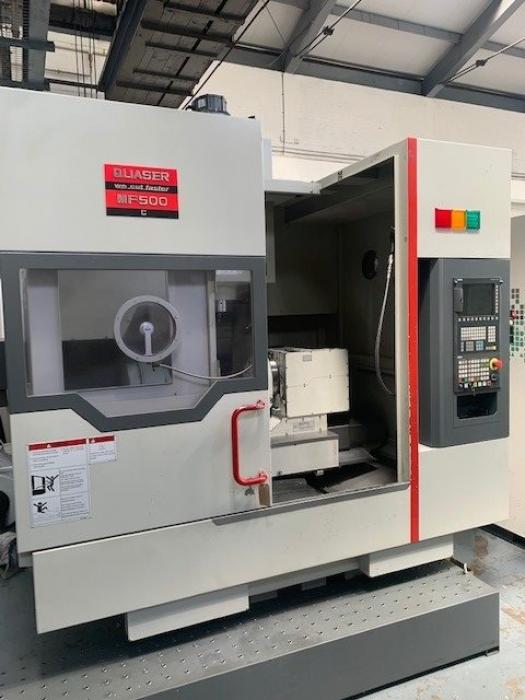

Quaser MF 500-C
Vertical Machining Centre
 |
|
Equipment and Features
Cnc Control: Siemens 828D
4+1 5 face machining centre
NC4 and OMP40 Renishaw probes
Swarf conveyor
Filtermist
Visi-port
Machine Specification
12000rpm coupled spindle
Table size 410mm
Max Swing 500mm
Max work piece 500 x 300 mm
Travel X 550mm
Travel Y 630mm
Travel Z 610mm
60 tool atc
20 bar thru-spindle coolant
Weight: 8250Kg
Size LxWxH: 3460mm x 2640mm x 3110mm
POA
