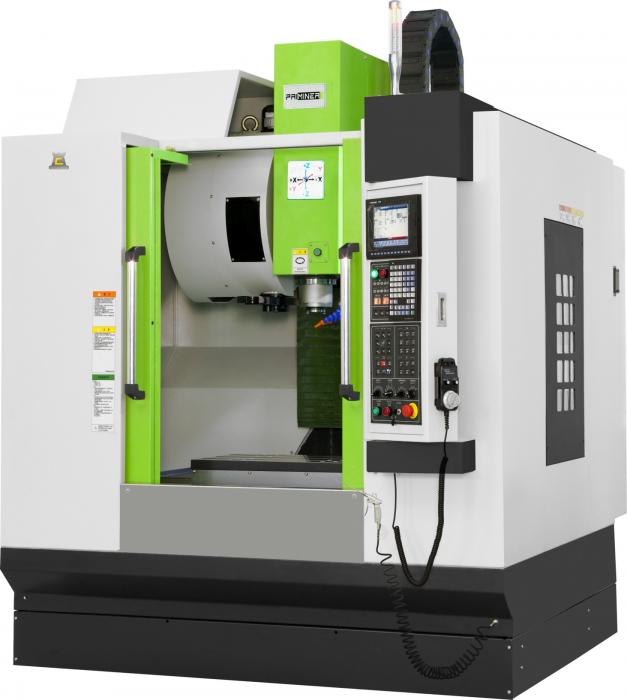

New Chester Priminer Delta Centre V6L

Vertical Machining Centre


Priminer Delta Centre V6L

Machine Summary

Machine Ref: 1397
Manufacturer: New Chester
Model: Priminer Delta Centre V6L
Description: Vertical Machining Centre `X` Travel 600mm
Electrics: 3
Year: 2017
Price: £0.00

Contact us about this Machine




Equipment and Features

Cnc Control: Siemens 828D

Automatic Lubrication System

Full Enclosed Splash Guard

Oil Separation

Air Gun

Ethernet / USB Interface

Chip Flushing Device

LED Work Lamp

End of Program Light

Rigid Tapping

20 Station Arm Tool Changer

Spindle Oil Cooler

Air Condition for Electrical Cabinet

Safety Door Interlock

Tool Box

Coolant System

Electronic Hand Wheel

Levelling Bolts & Blocks

Heat Exchanger for Electrical Cabinet

Operations Manual

Cast iron is tempered for stress relief to ensure structural stability without deformation.

C3 class ballscrews ensure the highest accuracy and durability.

Pre-tension on all axis minimises thermal distortion.

A SIMPLE ENTRY TO CNC MACHINING

Training
Tool Room Workshop
Metal Parts Machining
Mold Making
R & D


Machine Specification

Table Size: 750mm x 400mm

`X` Travel: 600mm

`Y` Travel: 400mm

`Z` Travel: 450mm

Spindle Nose to Table: 434mm

T Slot (width x number x distance) 14 x 3 x 125mm

Maximum Load: 350kg

Spindle Speed: 8000 rpm

Spindle Taper: BT 40

Spindle Motor: 5.5 / 7.5 kW

Dimensions: 2200mm x 2000mm x 2300mm

Weight: 3500kg
