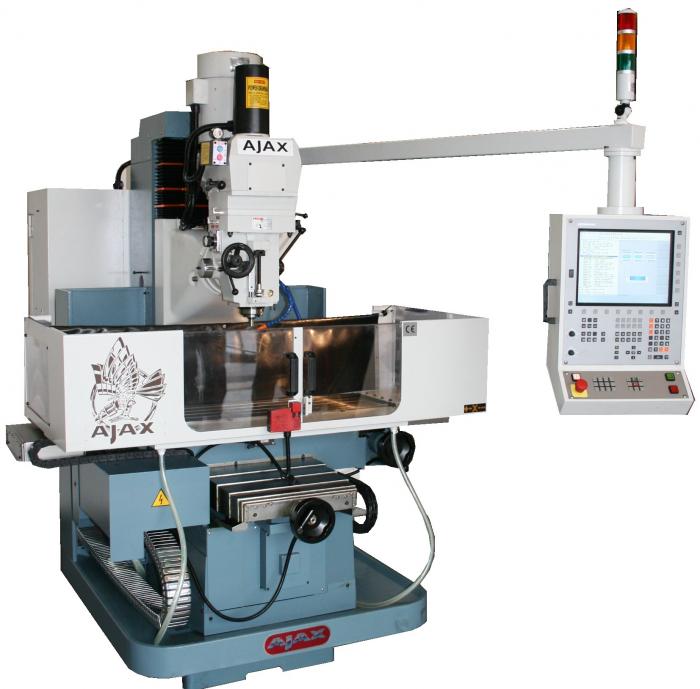

Ajax AJCBM - 750

(New) CNC Vertical Bed Mill


AJCBM - 750

Machine Summary

Machine Ref: 160
Manufacturer: Ajax
Model: AJCBM - 750
Description: (New) CNC Vertical Bed Mill
Electrics: 3 Phase
Year: 2017
Price: £0.00

Contact us about this Machine




Equipment and Features

The main parts of the machine are cast construction to give rigidity. Slideways are hardened & ground & coated with turcite-B.

Standard Features:-
Heidenhain TNC 320 or 620 Cnc Control with Conversational Programming,

AC Servo Motors
Automatic Lubrication
Halogen Work-Light
Slideway Covers
Table Guards
Inverter Spindle Drive System
Power Draw Bar
CE Mark

Options:-
Fully Enclosed Guards
DNC Software
Tooling Packages
Clamp Kits
Machine Vices

TO REQUEST A DETAILED QUOTATION PLEASE EMAIL OR FAX YOUR NAME & COMPANY DETAILS & THE AJAX MACHINE MODEL NUMBER- THANK YOU.


Machine Specification

Table Size: 1270mm x 320mm
`X` Travel: 750mm
`Y` Travel: 420mm
`Z` Travel: 500mm
Max.Table Load:600 Kgs
Distance Spindle to Column: 526mm,

Distance Spindle to Table:-
Min:100mm & Max: 600mm

Spindle Speeds: 60 to 3800 rpm
Spindle Taper: BT 40
Spindle Motor: 7.5 HP
Feed Rates: 0 to 6000mm/min
Rapid Rates: 7m/min
Height: 2400mm
Width: 2450mm
Depth: 1680mm
Nett Weight: 2200 Kgs
