Machine Summary

Machine Ref: 3984
Manufacturer: HAAS
Model: TM1-CE
Description: Cnc Mill with 4th Axis Indexer - Year 2006
Electrics: 3
Year: 2006
Price: £0.00

Contact us about this Machine


Equipment and Features

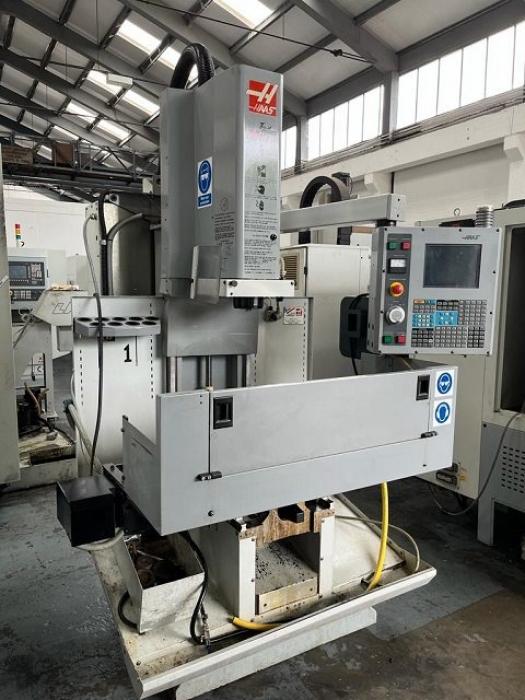

Well maintained 2006 built Haas TM1, 4,000RPM spindle and a Haas 4 Axis indexer supplied the following specification.

Machine Specification

X Axis 762mm

Y Axis 305mm

Z Axis 406mm

Spindle Nose to Table (~ max) 508mm

Spindle Nose to Table (~ min) 102mm

Table size: Length 1213mm Width 267mm

T-Slot Width 16mm T-Slot

Center Distance 101mm

Number of Std T-Slots 3

Max Weight on Table (evenly distributed) 456kgs

SPINDLE Max Rating 5.6KW

Max Speed 4,000RPM

Max Torque 45Nm

Drive System Drive Belt

Taper BT 40


Lubrication Grease

Cooling Air

FEEDRATES Rapids 10.2 M/Min
