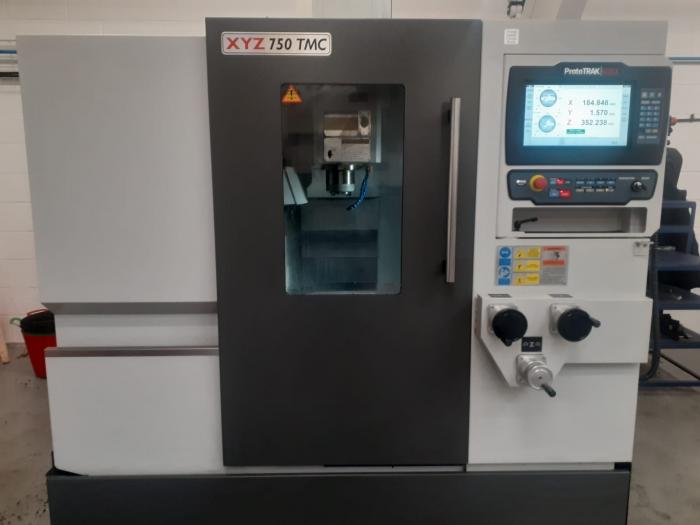

Xyz TMC 750
Vertical Machining Centre
 |
|
Equipment and Features
An as new 2023 and hardly used, XYZ TMC 750 Toolroom VMC with RMX wide screen control, additionally specified with: Advance Features RMX, Tacking including retractable Electronic Handwheels, and DXF Converter - cost in excess of £50,000 + VAT when new
Machine Specification
Working Area 743 x 425 x 489mm
Table Size 830 x 410mm
Spindle Centre to Column 500mm
Spindle to Table 100 - 600mm
Column Front to Table Centre 305 - 745mm
Rapid Feedrate 20 M/min Cutting Feedrates 1 - 20,000 MM/min
Max Table Load 500kg
T Slot Size 16mm T Slot Number & Pitch 3 off @100mm
Spindle Speeds 5 - 8,000 rpm
Spindle Motor 11kW (15hp)
Spindle Taper BT40
20 Station Carousel ATC
Chip to Chip Tool Change Time 8 secs
Max Tool Diameter 100mm
Max Tool Weight 7kg
Coolant Tank Capacity 125L
Ballscrew (Grade C3) 32mm Dia
P8 AC Servo Motor Max Torque X = 5 Nm / Y = 5 Nm / Z = 10 Nm
Machine Weight 3,500kg Footprint 2,392 x 2,460 x 2,670m
POA
