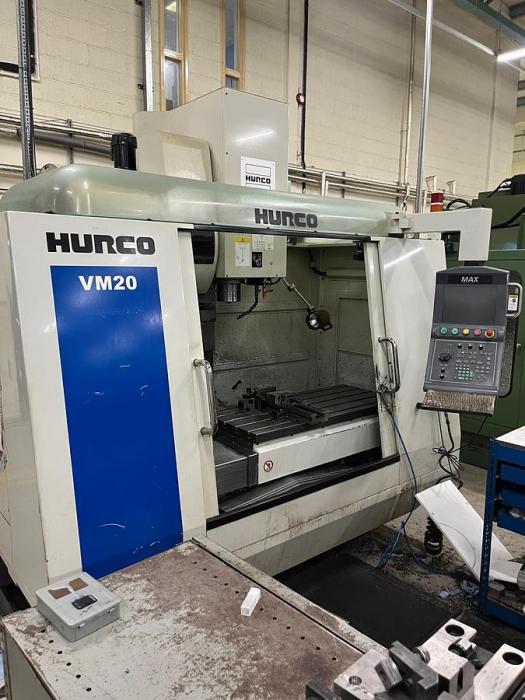

Hurco VM20
Vertical Machining Centre
 |
|
Equipment and Features
Used 2010 built Hurco VM20 machining centre with additional tooling.
Machine Specification
Axis Travel (X/Y/Z): 40" (1016mm) / 20" (508mm) / 20" (508mm)
Table Size: 46" x 20" (1168mm x 508mm)
Spindle Speed: Up to 10,000 RPM
Spindle Power: Around 20 HP (15kW)
Tool Capacity: 20-24 tools (BT/CAT 40 taper)
Control: Hurco WinMax CNC
Rapid Traverse (X, Y, Z): Up to 28 m/min (92 ft/min)
Max Table Load: Around 1200 lbs (545kg)
Machine Weight: Approximately 9,200 lbs (4,173 kg)
POA
