Hurco VM30
Vertical Machining Centre
 |
|
Equipment and Features

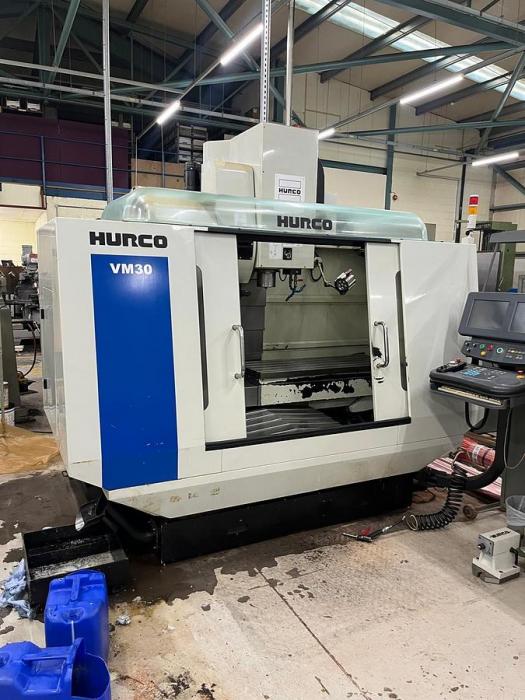

2012 built Hurco VM30 with 4th axis and tooling. In immaculate condition with extremely low hours, this is a superb machine.
Machine Specification
Work Envelope (Travels):X-Axis: 1270 mm (50 in)
Y-Axis: 510 mm (20 in)
Z-Axis: 510 mm (20 in)
Table:Working Surface: 1320 mm x 508 mm (52 in x 20 in)
Load Capacity: Up to 1800 kg (3968 lbs)
Spindle:Taper: SK40
Max Speed: 10,000 RPM
Power: 15 kW (20 hp)
Tool Changer:Capacity: 24 tools
Max Tool Weight: ~7 kg (15.4 lb)
Feedrates:Rapid Traverse (X/Y/Z): 28 m/min (1102 ipm)
Control: Integrated Hurco WinMax Control (Conversational, NC, Merge)
Machine Size/Weight: ~4250-4550 kg (9370-10000 lbs)
POA
