Quaser UC 300
Vertical Machining Centre
 |
|
Equipment and Features
POA
Machine Specification
Now here's a combo you don't come across every day...and we'll sell it as a full package, or split it into two lots:
2014 Quaser UX 300- 5-Axis VMC with a Halter 12 station stackable pallet pool system (this one is currently configured for Shunk Zero point pallets, but that can changed to suit) all served by a Fanuc M20i A Robot.
Quasar machines (see also Hardinge Bridgeport XR series, bult by Quaser) feature a robust construction with a rigid cast iron bed and high-quality linear guides, ensuring exceptional stability and reduced vibrations during machining operations. This structural integrity is vital for maintaining tight tolerances and high surface finishes
Note: Happy to separate the Halter Pallet Pool & Robot if required.
Quaser Spec:
Full 5-axis simultaneously machining centre with trunnion style table full C-axis 360°, B-axis +30/-120°, 15,000 RPM BBT 40 spindle, 60 tool ATC, Auto door, Blum Laser probing and touch probe system, through coolant, chilled spindle, swarf conveyor, fire suppression system, and robot integration (if required)

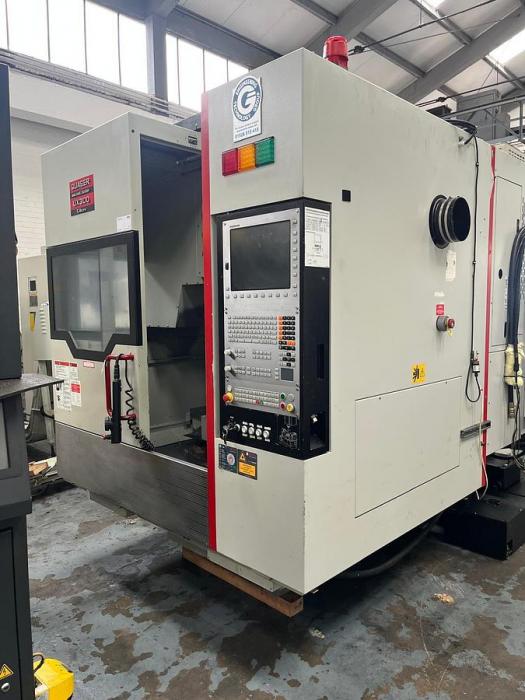

Photographed as arrived today, more pictures to follow once set up.
Specification:
X-travel 410 mm
Y-travel 610 mm
Z-travel 500 mm
15,000 RPM face & taper mounted BBT 40 spindle with chiller and through coolant
Heidenhain iTNC 530 HEIDENHAIN smart NC
Table dia: 320 mm
Table load: 100 kg
tool change unit 60 Pos.
total power requirement 35 kVA
weight of the machine ca. 7,4 t
dimensions of the machine ca. 4,15 x 3,8 x 3,28 m
Halter LoadAssitant 12 (Offer with the Quaser UX 300 or sold separately if required.)
Halter's "by Fastems" LoadAssitant-2 Mill Stacker, is a stand alone unit and is supplied with a 12 station rotary stacker table, a full enclosure, light curtains and a Fanuc M20i A robot. Currently configured for Shunk Zero Point Vices, but is easily changed to suit you. for This stand alone system is the perfect solution for batch type milling work and or lights out production and can be disconnected if not required.
Speciation:
Minimum workpiece (L x W) 40 mm x 40 mm
Maximum square workpiece (L x W)145 mm x 145 mm
Maximum rectangle workpiece (L x W)40 mm x 200 mm
Height of workpiece (min - max)10 mm - 175 mm
Maximum load capacity robot arm 12 kg
Maximum total weight on rotating table 660 kg
Maximum stacking height 375 mm
Number of stacking stations (1 empty) 12
Maximum weight per station 60 kg
Max. number of workpieces at workpiece height of 10 mm 407
Max. number of workpieces at workpiece height of 20 mm198
Max. number of workpieces at workpiece height of 50 mm 77
Max. number of workpieces at workpiece height of 70 mm 55
Max. number of workpieces at workpiece height of 85 mm 44
Max. number of workpieces at workpiece height of 110 mm 33
Max. number of workpieces at workpiece height of 150 mm22
