Hurco VM30i
Vertical Machining Centre
 |
|
Equipment and Features

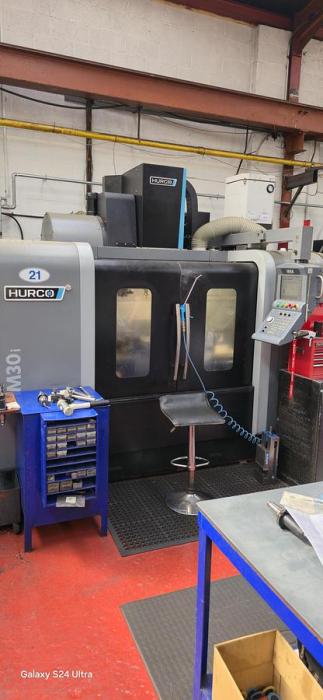

A pair of well looked after 2014 built Hurco VM30i with single MAX screen Hurco Control.
Fitted with Max control, 10,000 RPM BT40 spindle. In super condition given their age!
Floor space (LxWxH) mm 4.083x2.743x2.576
Standard configuration
Control: WinMax
Pocket and island milling
Rigid tap and tapping
Remote Jogbox
Machine Specification
X Axis stroke mm 1.270
Y Axis travel mm 510
Z Axis stroke mm 510
Spindle nose to table surface mm 100-610
T slot (WxDxN) mm 5x18
Working table area (LxW) mm 1.320x510
Spindle Speed rpm 10.000
Main motor kw 15
Motor torque Nm 102
X/Y/Z Axis cutting feedrate mm/min 24/ 24/ 24
Pull stud SK40
Tool storage capacity pc 20
Max. Tool Diameter mm 89
Max. Tool Length mm 250
Max. Tool Weight Kg 7
Machine weight Kg 4.245
Floor space (LxWxH) mm
Spindle 10.000 RPM
Swing arm type 20 tool ATC
POA
