Hurco VM20i
Vertical Machining Centre
 |
|
Equipment and Features

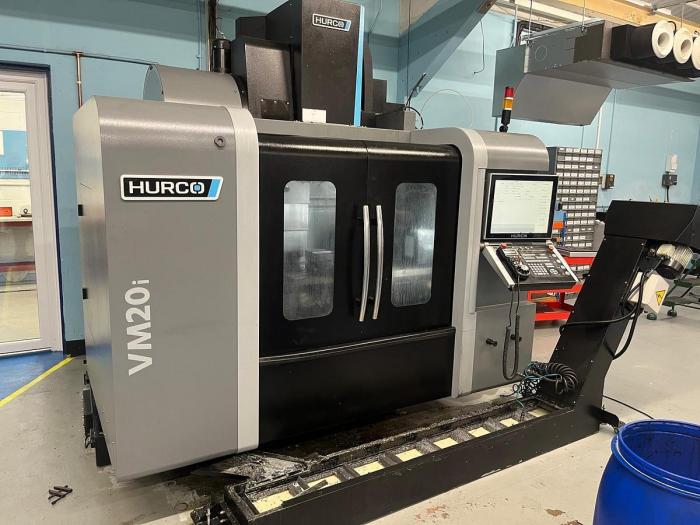

An immaculate, 2017 built and lightly used Hurco VM20i with single wide screen Hurco Control.
Machine is fitted with a Hurco 200mm 4th Axis Table and tailstock, 10,000 RPM Cat 40 spindle, swarf conveyor and a full suit of tool holders, rigid tapping & Ultipocket options are enabled.
Spindle run hours are only 5700 hours and has full Hurco service history.
Machine Specification
10,000 RPM spindle, 20 tool side mount ATC, swarf conveyor, DFX file reader,
X, Y, Z Axis Travel: 40 x 20 x 20 inches (1016 x 508 x 508 mm)
Table Size: 46 x 20 inches (1168 x 508 mm)
Max. Weight on Table: 3970 lbs (1800 kg)
Spindle Nose to Table Min/Max: 4.0 / 24 inches (102 / 610 mm)
T-Slot Size: 5 x 0.71 inches (5 x 18 mm)
Spindle:
Max. Spindle Speed: 10,000 rpm
Spindle Power (peak - 1 min): 20 hp (15.0 kW)
Spindle Torque (peak - 1 min): 75 ft-lbs @ 1450 rpm (102 Nm @ 1450 rpm)
Tool Changer:
Tool Type: CAT 40 / Big Plus®
Number of Tools: 20
Max Tool Diameter: 3.1 inches (80 mm)
Max Tool Length: 9.8 inches (250 mm)
Max Tool Weight: 15.4 lbs (7 kg)
Feedrates:
Rapid Traverse X, Y, Z Axis:
1102 inches/min (28 m/minute)
Max Programmable Feedrate: 1102 inches/minute (25.5 m/minute)
Size:
Max Operating Floor Space:
145.8 x 118.4 inches (3703 x 3007 mm)
Machine Height: 101.5 inches (2576 mm)
Machine Weight: 9,039 lbs (4100 kg)
POA
