Hurco DCX 22i / 40
Double Column VMC
 |
|
Equipment and Features

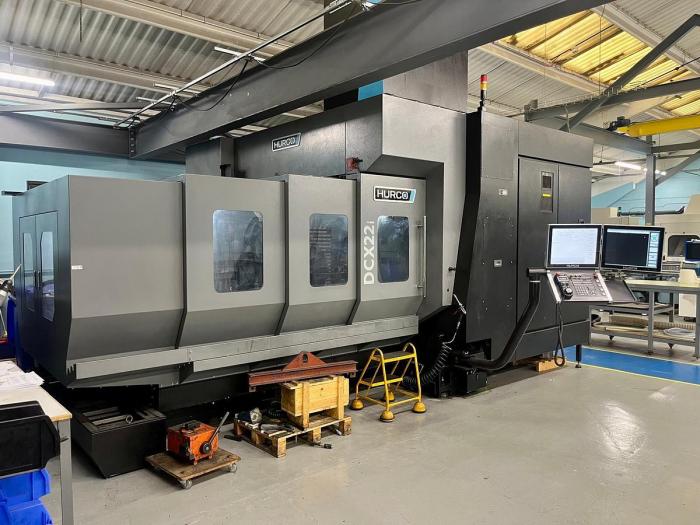

An immaculate, ex OEM owned, lightly used Hurco DCX22i / 40 Double Column VMC that is very rarely seen on the pre owned market.
This machine is spec'd with the more flexible 40 size CAT spindle taper and has very few hours as it was used for prototyping.
Great capacity too, as follows:
Machine Specification
Travels: 2,200 x 1,700 x 750 mm
Table Size: 2,100 x 1,600 mm
Spindle Nose to Table 152 / 902 mm (Min-Max)
Max. Weight on Table: 8,000 kg
Distance b/w Columns:1,750 mm
Max. Spindle Speed: 12,000 rpm
Spindle Power (peak - 1 min) 24 hp @ 900 rpm (18 kW @ 900 rpm)
Spindle Torque (peak - 1 min) 175 ft lbs @ 720 rpm (237 Nm @ 720 rpm)
Tool Type: CAT 40
Number Of Tools 40
Max Tool Diameter: 75 mm
Max Tool Length: 300 mm
Max Tool Weight: 7 kg
Feedrates
Rapid Traverse: 24 m/min
Size
Max. Operating Floor Space: 7,210 x 5,765 mm (with doors Open)
Machine Height: 3,889 mm
Machine Weight: 21,000 kg
Power Rating-Full Load: 48KVA
POA
