Xyz VMC 1020
Vertical Machining Centre
 |
|
Equipment and Features

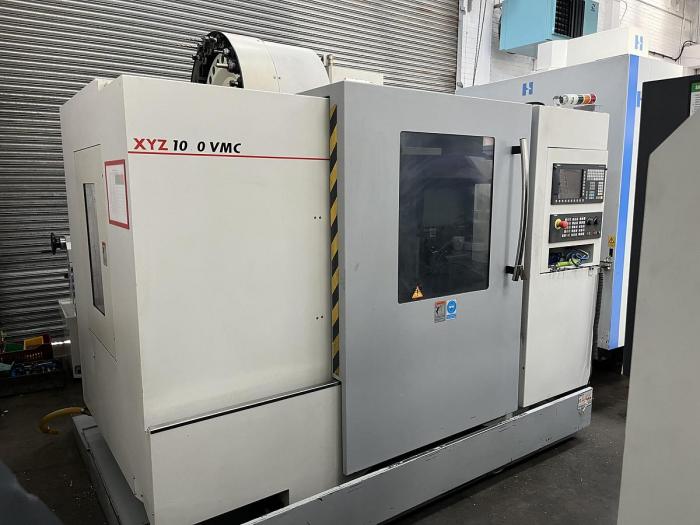

Used 2012 YZ VMC 1020 Vertical Machining Centre
Supplied with Siemens 828D & ShopMill control, 8,000 RPM spindle, 24-station side-mount ATC, Coolant Equipment, and Manual Set.
Machine Specification
TRAVELS:
X Axis: 1,020 mm
Y Axis: 500 mm
Z Axis: 500 mm
Spindle Nose to Table (max): 650 mm
Spindle Nose to Table (min): 150 mm
TABLE:
Length: 1,200 mm
Width: 450 mm
Max Weight on Table (evenly distributed): 500 kg
SPINDLE:
Max Speed: 8,000 rpm
Taper: BT40
Drive System: Belt Drive
Spindle Motor: 11 kW (5.5 kW continuous)
FEEDRATES:
Cutting Feedrate: 1 – 500 mm/min
Rapid Traverse (X/Y/Z): 12,000 mm/min
TOOL CHANGER:
Type: Side mount
Capacity: 24 Tools
Max Tool Weight: 7 kg
GENERAL:
Control: Siemens 828D with ShopMill
Power Supply: 415 V / 3 Phase / 50 Hz
Machine Input Power: 5.5 kW Continuous
Main Motor: 11 kW
POA
