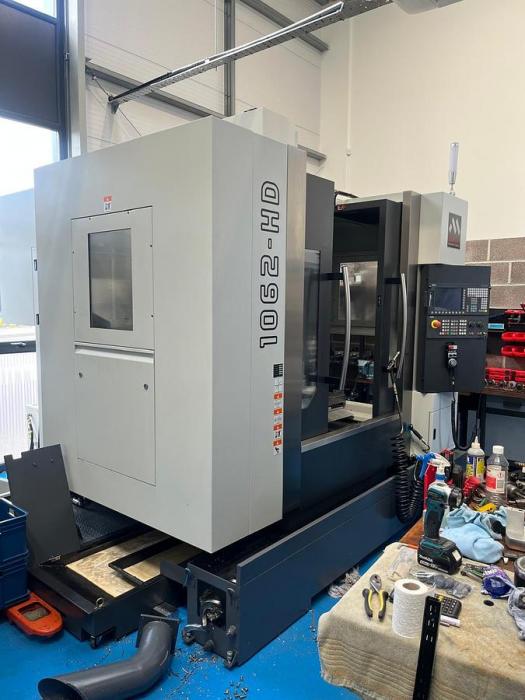

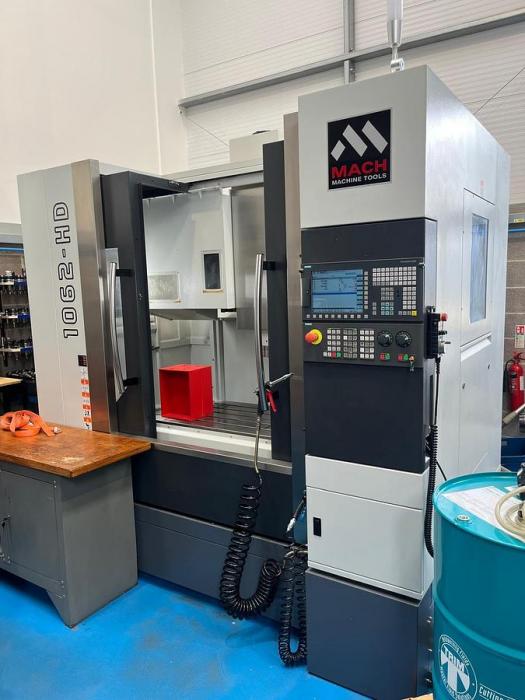

Mach 1062 VMC HD
Vertical Machining Centre
 |
|
Equipment and Features
MACH 1062HD VMC vertical machining with Siemens 828D control with Shop Mill, 12,000RPM direct drive spindle with through spindle coolant & Face & Taper taper, 24 tool side mount ATC, fitted with 4th Axis, swarf auger and a suite of tool holders. Immaculate condition! Choice of 2! YOM 2020
Machine Specification
Spindle Taper BBT 40 Face and Taper (Direct Drive)
Spindle RPM 12,000 RPM
Spindle Power 18.5Kw (25 HP)
Spindle Torque 118 Nm
Table Length 1200mm (47.2”)
Table Width 600mm (23.6”)
Tee Size & No 18mm - 5
Tee Slot Offset 100mm (3.93”)
X Axis Travel 1020mm (40.15”)
Y Axis Travel 625mm (24.6”)
Z Axis Travel 610mm (24”)
Linear Rail Size 45mm
Ballscrew diameter 45mm
Rapid Traverse Rate 36 m/min
Acceleration X:0.7G / Y: 0.7G / Z: 0.5G
Spindle Nose to Table 100-710mm (3.94” – 27.95”)
Spindle centre to Column 420mm (16.53”)
X, Y & Z Axis Way Linear Roller Bearing
Magazine Positions 24
Maximum Tool Length 300mm
Maximum Tool Weight 8 Kg (17.6 lbs)
Max table load 900 Kgs (1984 lbs)
Coolant Capacity 400 L
Lubrication Automatic grease system
Flood coolant flow rate 70 L/min – 4 bar
Machine Weight 7300 Kg (16093 lbs)
POA
