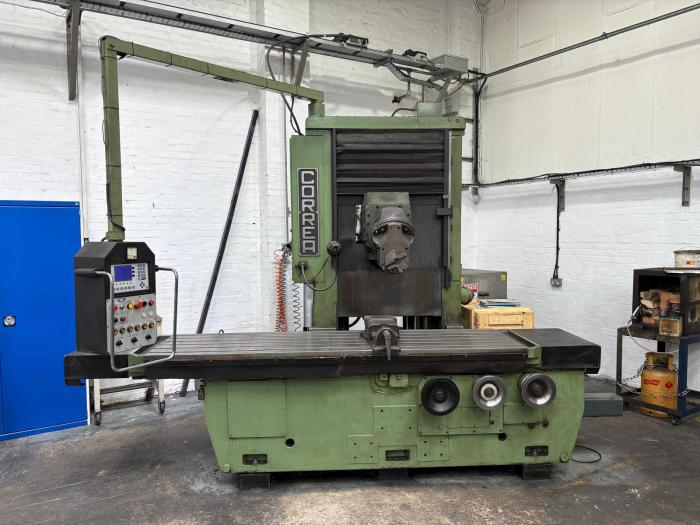

Correa A-20-25
Bed Type Milling Machine
 |
|
Equipment and Features
Machine complete with :-
Pendant control, D.R.O., Universal angular double swivel milling head, Hydraulic speed change, Longitudiunal, cross and vertical Ball Screws, Dual controls for manual machine operation, Tooling
VERY GOOD CONDITION
Machine Specification
Table size 2500 x 700mm, Longitudinal table travel X-axis 2200mm, Vertical travel Y-axis 1000mm, Cross ram travel Z axis 1000mm, Spindle nose to table 50-1050 mm, Height centreline of spindle to table 88-1389 mm, Spindle speeds 2 Range in (18) steps 40-2000 rpm, Taper in spindle nose 50 ISO., Range of feeds Inf. Var. 5– 1500 mm/min, Rapid traverse 3000 mm/min, Spindle motor 15 kW, Machine weight 9500 kg.
