Xyz SMX 5000

Cnc Milling Machine

Machine Summary Machine Ref: 4951 Manufacturer: Xyz Model: SMX 5000 Description: Cnc Milling Machine Year 2014 Electrics: 3 Year: 2014 Price: £0.00 Contact us about this Machine

Equipment and Features

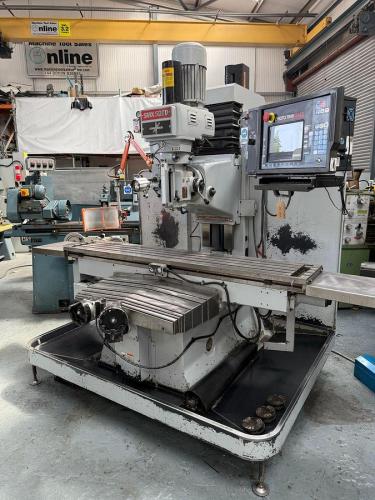

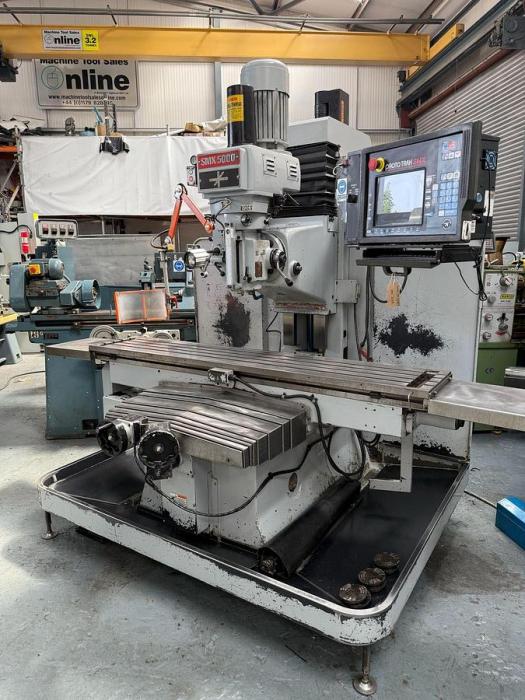

Used 2014 XYZ SMX 5000 CNC / Manual Bed Milling Machine. Supplied with ProtoTRAK SMX Control, Electronic Handwheels, TRAKing & DXF File Reader, Power Drawbar, Fully Programmable Spindle Drive and Custom-Made Splash Guards.

Machine Specification

TRAVELS:

X Axis: 1,524 mm

Y Axis: 596 mm

Z Axis: 540 mm

Maximum Daylight Under Spindle: 610 mm

Quill Travel: 140 mm



TABLE:

Length: 1,930 mm

Width: 356 mm

T-Slot Width: 15.9 mm

Maximum Table Load: 850 kg



SPINDLE:

Motor Power: 5.75 kW (7.5 HP)

Speed Range: 40 - 5,000 rpm

Taper: ISO 40

Quill Diameter: 116 mm

Programmable Spindle Drive



HEAD:

Head Tilt Left: 45°

Head Tilt Right: 45°



CONTROL:

ProtoTRAK SMX Conversational CNC Control

Electronic Handwheels

TRAKing Function



EQUIPMENT:

Power Drawbar

Splash Guards



GENERAL:



Machine Weight: 3,100 kg

POA
