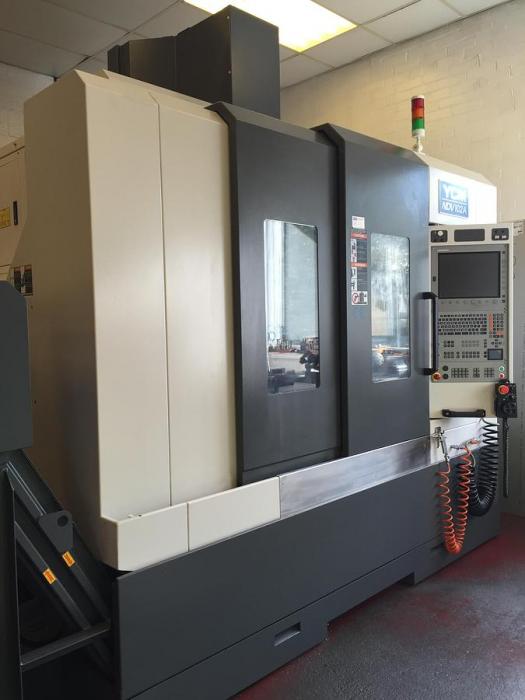

YCM NDV 102A

Vertical Machining Centre

Machine Summary Machine Ref: 4661 Manufacturer: YCM Model: NDV 102A Description: Vertical Machining Centre Year 2011 Electrics: 3 Year: 2011 Price: £0.00 Contact us about this Machine

Equipment and Features

Used 2011 YCM NDV102A Vertical Machining Centre. Supplied with 12,000 RPM Spindle, 30-station ATC, Swarf Conveyor, Coolant Equipment & Manual Set

Machine Specification

TRAVELS:

X Axis: 1,020 mm
Y Axis: 600 mm
Z Axis: 600 mm
Spindle Nose to Table (~ max): 700 mm
Spindle Nose to Table (~ min): 100 mm​
TABLE:

Length: 1,120 mm
Width: 650 mm
T-Slot Width: 18 mm
Number of Std T-Slots: 6
Max Weight on Table (evenly distributed): 1,000 kg​Machinery Resources International
SPINDLE:

Max Rating: 15 kW (20 hp)
Max Speed: 12,000 rpm
Drive System: Direct Speed Belt Drive
Taper: Big Plus BBT40
Bearing Lubrication: Oil Injection
Spindle Chiller
FEEDRATES:

Rapid and Jog (Max.): 24 m/min
AXIS MOTORS:

Axis Motor Rating X/Y/Z: 2.29/2.29/3.3 kW​
TOOL CHANGER:

Type: Side mount
Capacity: 30T
Max Tool Diameter: 76 mm
Tool Length Max.: 300 mm
Tool Weight Max.: 6 kg
Tool Change Time: 2.5 sec​
GENERAL:

Air Required: 78.2 psi/min
Power Supply: 400 V / 3 Phase
Coolant Capacity: 360 L
Machine weight 7,000kg

POA
