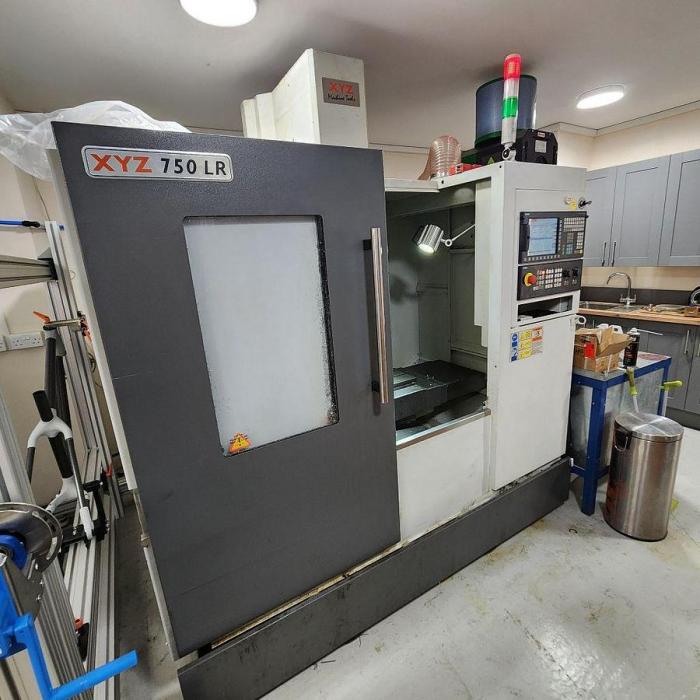

Xyz 750 LR

Vertical Machining Centre

Machine Summary Machine Ref: 4659 Manufacturer: Xyz Model: 750 LR Description: Vertical Machining Centre Year 2018 Electrics: 3 Year: 2018 Price: £0.00 Contact us about this Machine

Equipment and Features

An immaculate 2018 XYZ 750 LR VMC fitted with 20 ToolATC, Shopmill, MPG contour handwheel, DFX file reader.

Siemens 828D Control with ShopMIll

Machine Specification

Table: 830 x 410mm

X-Axis Travel 750mm

Y-Axis Travel 440mm

Z-Axis Travel 500mm

T Slot Size 3 x 16 x 100mm

Maximum Table Load Capacity 500Kgs

Distance from spindle nose to working surface table 100 – 600mm

Distance from spindle centre to main column 500mm

Spindle Taper BT40

Spindle Speeds to 8,000rev/min

Rapids 20m/min

Cutting Feed Rates (XYZ) 1 – 20,000mm/min

Linear Rail Slideways

Tool Magazine: Capacity 20 Carousel

Max’ Tool Weight 7Kgs

Tool Change Time (T-T) 8 Secs

Drive Motor:

Spindle Drive Motor 10HP

Coolant 1/4HP

Chip Wash 1/4HP

Overall Dims: 2100 x 2100 x

2655mm

Gross Weight: 3500 Kgd

POA
