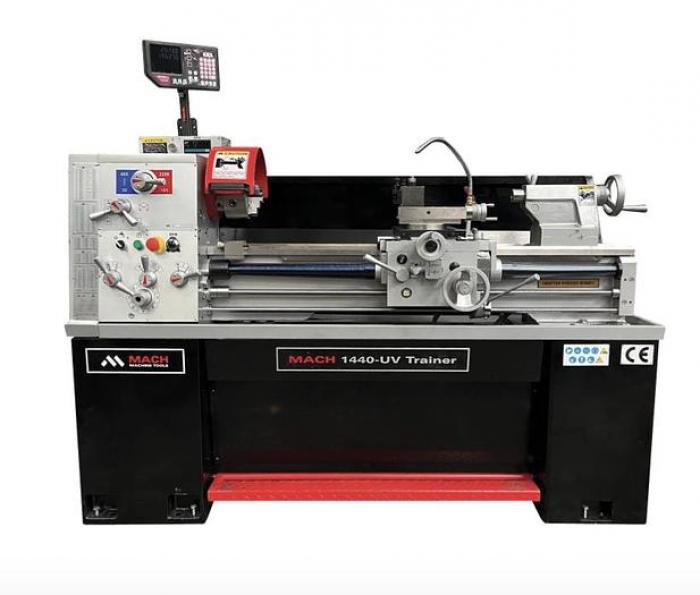

MACH 1440 V Trainer
New Lathe
 |
|
Equipment and Features
MACH Machine Tools’ new, technically-excellent and competitively-priced MACH 1330-G and MACH 1440-V Trainer lathes provide toolrooms and educational organisations with a compact, reliable, high-performance and flexible turning solution.
These rigidly-built lathes are available with different bed sizes, swing over bed and carriage capabilities and distances between centres.
The MACH 1440V is an infinitely variable speed model with a universal gearbox enabling it to machine metric and imperial threads without modifying the gear train. It also features a 2.2kW/2200rpm spindle, a tailstock and a 206mm x 1680mm bed.
The lathe delivers consistently high cutting performance and features a whole host of technologies and accessories supplied as standard.
These new 1440V lathe demonstrates that customers do not need to compromise on quality, productivity or value when investing in a trainer-type lathe.
Machine Specification
SWING OVER BED 356 mm diameter
SWING OVER CROSS SLIDE 220 mm diameter
CENTRE HEIGHT 178 mm
DISTANCE BETWEEN CENTRES 1000 mm
WIDTH OF BED 206 mm
LENGTH OF BED 1680 mm
CROSS SLIDE TRAVEL 167 mm
TAILSTOCK TAPER M.T. #3
TAILSTOCK DIA 45 mm
SPINDLE BORE 38 mm
SPINDLE MOTOR 2.2 kW
COOLANT PUMP 0.175 kW
WEIGHT 700 kgs
MEASUREMENTS 1750 x 765 mm
POA
