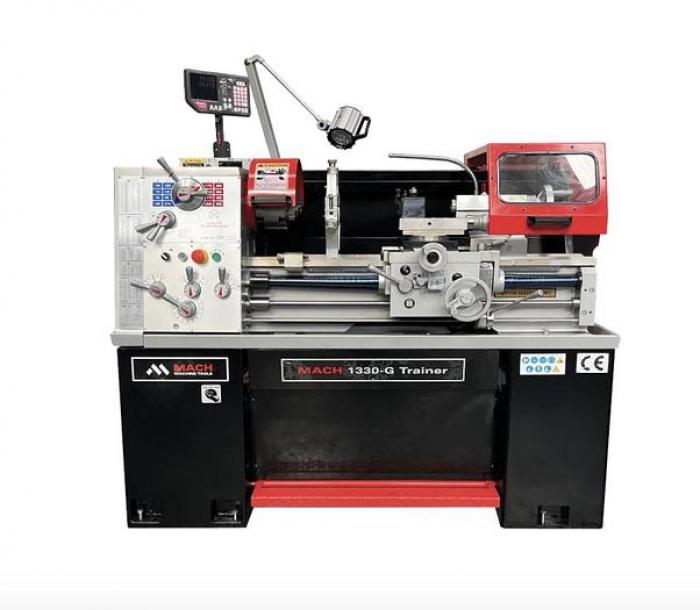

MACH 1330 G Trainer
New Lathe
 |
|
Equipment and Features
MACH Machine Tools’ new, technically-excellent and competitively-priced MACH 1330-G and MACH 1440-V Trainer lathes provide toolrooms and educational organisations with a compact, reliable, high-performance and flexible turning solution.
These rigidly-built lathes are available with different bed sizes, swing over bed and carriage capabilities and distances between centres.
The MACH 1330-G is equipped with an eight-speed gearbox powered by a twin-speed motor, a 2.2kW/1800rpm spindle, a tailstock and a 206mm x 1430mm bed.
The lathe delivers consistently high cutting performance and features a whole host of technologies and accessories supplied as standard.
These new 1330G lathe demonstrates that customers do not need to compromise on quality, productivity or value when investing in a trainer-type lathe.
Machine Specification
SWING OVER BED 330 mm diameter
SWING OVER CROSS SLIDE 195 mm diameter
CENTRE HEIGHT 165 mm
DISTANCE BETWEEN CENTRES 750 mm
WIDTH OF BED 206 mm
LENGTH OF BED 1430 mm
CROSS SLIDE TRAVEL 157 mm
TAILSTOCK TAPER M.T. #3
TAILSTOCK DIA 45 mm
SPINDLE BORE 38 mm
SPINDLE MOTOR 2.2 kW
COOLANT PUMP 0.175 kW
WEIGHT 650 kgs
MEASUREMENTS 1700 x 765 mm
POA
