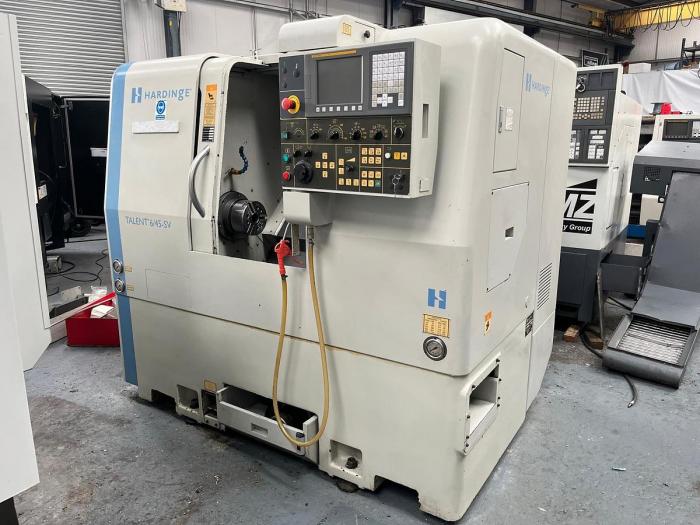

Hardinge Talent 6-45 SV
Cnc Lathe
 |
|
Equipment and Features
The Hardinge Talent 6-45 SV is a high-precision, slant-bed CNC turning centre built in 2006. It features a Fanuc Series Oi-TB control system and includes a 3 Jaw power chuck and turret tooling, making it suitable for high-performance, compact machining tasks.
CONTROL
Fanuc Series Oi-TB Control
8.4” LCD Display
Full G-code Programming Support
Networking Capabilities: Ethernet, USB, DNC
Machine Specification
CAPACITY
Max bar capacity (with 16C collet adaptor): 45 mm
Spindle bore: 42 mm
Maximum swing over bed: 457 mm
Maximum turning diameter: 284 mm
Maximum turning length: 381 mm
Distance between centers: 381 mm
MAIN SPINDLE
Spindle speed maximum: 6,000 min⁻¹
Spindle motor power: 11.0 kW
Spindle taper: A2-5
TURRET
Tooling system: Block
Number of turret stations: 12
Number of live (rotating) tools: 12
FEED AXES
Travel (X axis): 228.6 mm
Travel (Z axis): 406.4 mm
ACCESSORIES & FEATURES
Turret tooling included
MACHINE SIZE
Machine dimensions (L x W x H): 2,032 mm × 1,651 mm × 1,727.2 mm
Machine weight: Approx. 2,800 kg
POA
