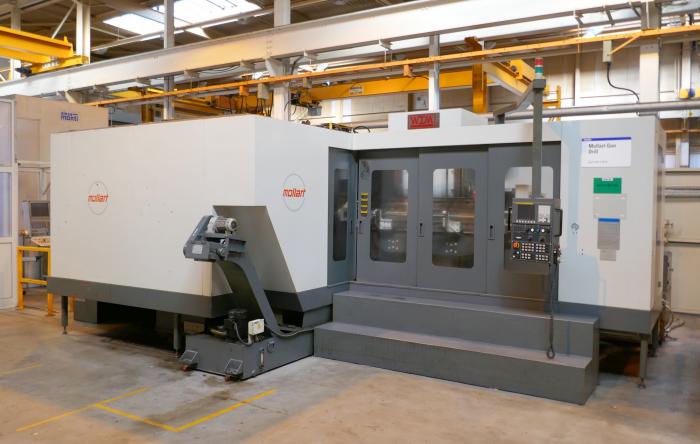

Mollart Matrix DHD 1510 - 18S
Deep Hole Drilling Machine
 |
|
Equipment and Features
Cnc Control: Fanuc Oi MD
Machine complete with :-
Full guarding, Whip guide set, Chip conveyor, High pressure coolant system, Chiller. Selection of Single Lip Gun Drill Tools 10mm – 16mm.
Machine Specification
Drilling diameter range from solid 2 mm – 40 mm, Drilling depth Z axis 1850 mm, Table travel horizontal X axis 1500 mm, Spindle vertical travel Y axis 1000 mm, Table Size 1200 x 1700 mm, Maximum table load 6000 kg, Spindle Speeds 0 – 6000 rpm, Drilling feeds 0 – 3000 mm/min, Spindle Motor 11 kW, Coolant pressure 2 – 11 Mpa, Weight of machine (approx.) 13,000 kg, Floor area (approx.) 7000 x 6000 mm, Height 3000 mm
Price on Application
