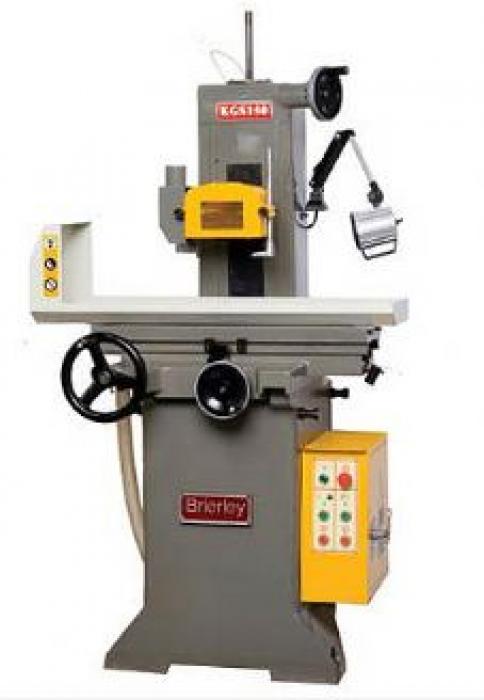

New Chester KGS 200

Surface Grinder


KGS 200

Machine Summary

Machine Ref: 786
Manufacturer: New Chester
Model: KGS 200
Description: Surface Grinder
Electrics: 3
Year: 2017
Price: £0.00

Contact us about this Machine




Equipment and Features

One Shot Lubrication
Ball Bearing Slides
Heavy Duty Cast Construction
Superior Quality Motor
Surface Roughness Ra0.2um

STANDARD ACCESSORIES:
Coolant System
Halogen Lamp
Grinding Wheel
Wheel Guard
Splash Guard
Manual and Parts list
Permanent Magnetic Chuck

OPTIONAL ACCESSORIES
Digital Readout
Dust Suction Coolant System
Magnetic Paper Filter




Machine Specification

Working Surface of Table: 160 x 460mm
Max: Table Travel: 495mm
Max Cross Travel: 220mm
Distance between Table & Spindle Centre 530mm
Max Table Load: 123kgs
Nos of ‘T’ Slots 1
Size of ‘T’ Slots 14mm
Crossfeed Handwheel – 1 grad 0.02mm
Crossfeed Handwheel – 1 rev 5mm
Grinding Wheel 200 x 25 x 31.75mm
Spindle Speed 50Hz 2850rpm
Spindle Speed 60Hz 3420rpm
Vertical handwheel – 1 grad 0.01mm
Vertical Handwheeel – 1 rev 2mm
Spindle Motor 1.5kw
Dust Collection Motor 0.55Kw
Coolant Motor 90w
Floor Space 1900 x 1900mm
Overall Dimensions 1120 x 1480 x 2090mm
Net Weight 1100kgs

TO REQUEST A QUOTATION PLEASE EMAIL THE MAKE & MODEL NUMBER OF THE CHESTER GRINDER OR THE SIZE OF MACHINE THAT YOU ARE LOOKING FOR - THANK YOU
