Fanuc Robodrill
Cnc Drilling Machine
 |
|
Equipment and Features

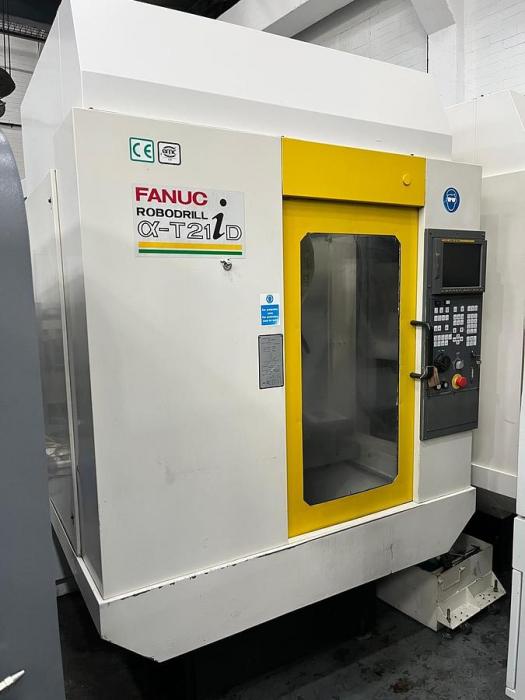

A one owner and well maintained 2003 built Fanuc RoboDrill T21iD with Fanuc 16iMB control, BT30 10,000RPM Spindle, 21 Tool ATC, a Zero Point sub plate, machine vice & coolant equipment. Very clean machine!
Machine Specification
X Axis Travel 500 mm
Y Axis Travel 400mm
Z Axis Travel 350mm
Table Size 650 x 400mm
Table Load 250 Kgs
Spindle Taper BT-30
Max. Speed 10,000RPM
Motor Power 7.5 KW
ATC Tool Capacity 21 stations
CNC Control Fanuc 16i-MB
Rapid Traverse 54 m/min
Machine Weight Approximately 2,000 kg
POA
