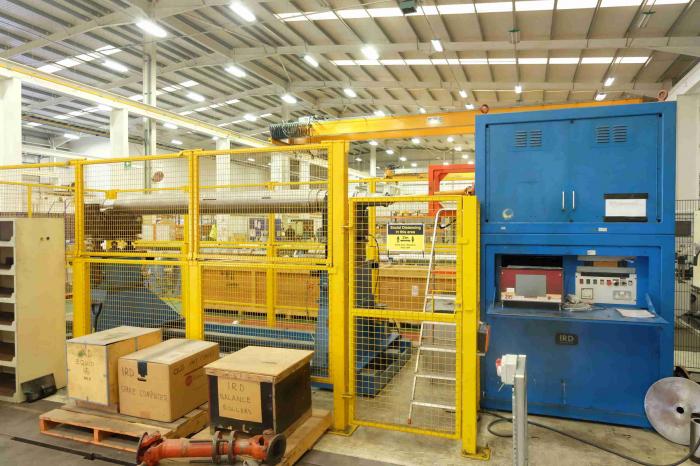

IRD B750 RR Series
Dynamic Balancing Machine
 |
|
Equipment and Features
Machine Specification
Weight capacity 34 000 kg
Maximum Rotor diameter 3302 mm
Max. balance length approx. 6000 mm
Machine base 5800 x 1750 mm
Journal diameter range 51 – 508 mm with interchangeable rollers
Journal to Journal separation 140 – 2030 mm
Drive type Cardan Shaft.
Drive motor 45 kW DC Variable speed motor (to be confirmed)
Balancing speed range 5.4 – 1438 rpm
Overall size with enclosure approx. 3250 x 7100 mm
Complete with :-
Instrumentation – IRD Model 295, Left and right pedestal adjustment along length of base, Additional roller sets for smaller diameters, 2 x Cardan driveshafts, Operator controls, Lubrication to rollers, Safety guard enclosure.
