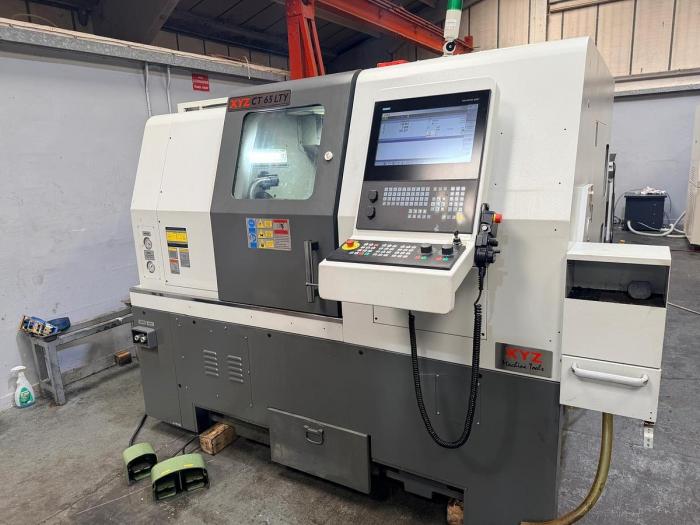

Xyz CT65 LTY
Cnc Lathe
 |
|
Equipment and Features
The XYZ Machine Tools XYZ CT65 LTY CNC turning centre in excellent condition with 12-station VDI 30 live tooling turret, Y-axis capability, hydraulic tailstock, chip conveyor, through-tool coolant, and automatic lubrication system. Designed for high-precision turning and mill-turn applications with bar capacity up to 65 mm.
CONTROL
Seiemns 828D with Shopmill
Conversational and G-code programming capability
Electronic handwheel for setup and jogging
Fully interlocked safety guarding
Hydraulic tailstock
Programmable hydraulic tailstock (optional)
COOLANT & LUBRICATION
Through-tool coolant system
Flood coolant system
Automatic lubrication system
Coolant tank capacity: 80 litres
Oil skimmer (optional)
Oil mist device (optional)
Coolant gun (optional)
ACCESSORIES
Chip conveyor and chip bin
Parts catcher system
Renishaw automatic tool setting arm
Air gun
Transformer
Leveling bolts and blocks
Tool kit
Machine Specification
CAPACITY
Chuck size (main spindle): 200 mm
Maximum swing: 400 mm
Maximum machining diameter: 220 mm
Maximum turning length: 490 mm
Maximum bar capacity: 65 mm
TRAVEL
Travel (X axis): 220 mm
Travel (Y axis): ±35 mm
Travel (Z axis): 500 mm
Rapid traverse rate: 20 m/min
Cutting feed rate: 0.01–10 m/min
MAIN SPINDLE
Spindle nose: A2-6
Maximum spindle speed: 4,500 rpm
Spindle bore: 76 mm
TURRET
Turret type: 12-station VDI 30 power turret
Number of tools: 12
Turning tool size: 20 x 20 mm
Maximum boring bar diameter: 32 mm
Live tooling maximum speed: 4,500 rpm
TAILSTOCK
Tailstock taper: MT4
Quill diameter and travel: 60 mm x 90 mm
MACHINE SIZE
Machine dimensions (L x W x H): 3240 mm x 1788 mm x 1838 mm
Door opening width: 668 mm
Machine weight: 4,400 kg
POA
