Hurco TM6i
Cnc Lathe
 |
|
Equipment and Features

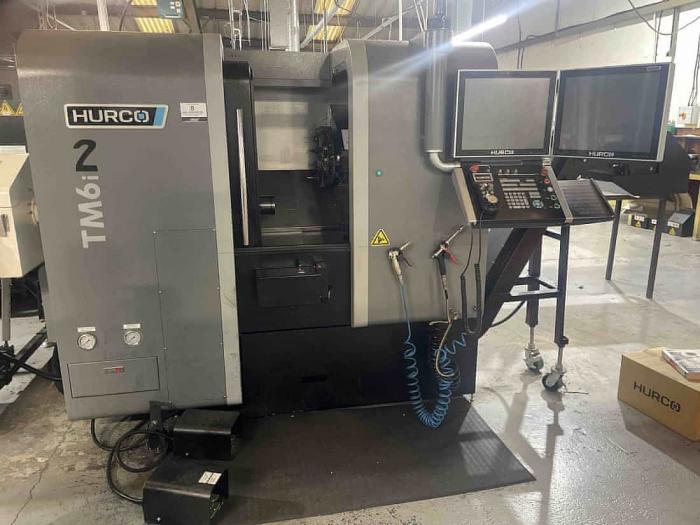

Used 2020 Hurco TM6i CNC Lathe available in very good condition. Fitted with the Hurco WinMax Control, this machine offers intuitive programming, fast setup times, and reliable high-speed machining performance. The lathe is fully operational and can be inspected under power in our showroom.
A compact yet capable CNC turning solution, the Hurco TM6i is designed to deliver consistent accuracy, efficiency, and productivity across a wide range of production applications.
Machine Specification
CAPACITY
Max Turning Diameter: 215 mm
Swing Over Bed Diameter: 405 mm
Swing Over Cross Slide Diameter: 240 mm
X-Axis Travel: 168 mm
Z-Axis Travel: 356 mm
SPINDLE
Max Spindle Speed: 6,000 rpm
Max Spindle Torque: 114 Nm
Spindle Power: 13 kW
Chuck Diameter: 169 mm
Draw Tube Diameter: 45 mm
TURRET
Turret Type: VDI 20
Tool Stations: 12
Max Boring Bar Diameter: 32 mm
Tool Shank Width: 19 mm
FEEDRATES
Rapid Traverse (X / Z Axis): 30 / 30 m/min
SIZE & WEIGHT
Floor Space Required (doors open, incl. control & chip conveyor):
3,916 x 2,525 x 2,144 mm
Machine Weight: 3,250 kg
POA
