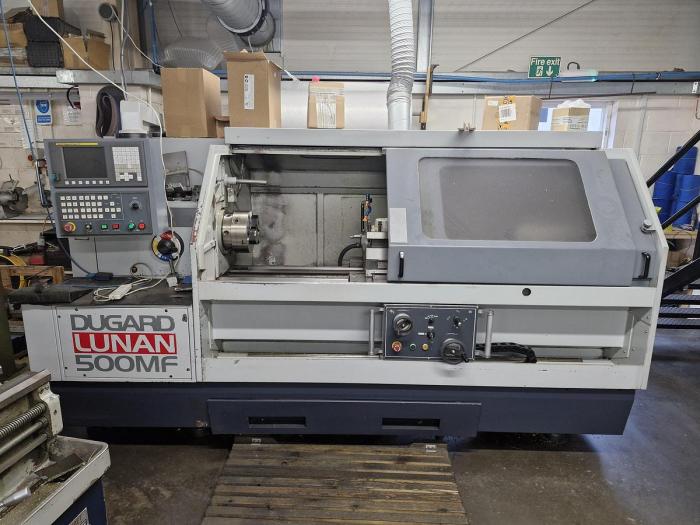

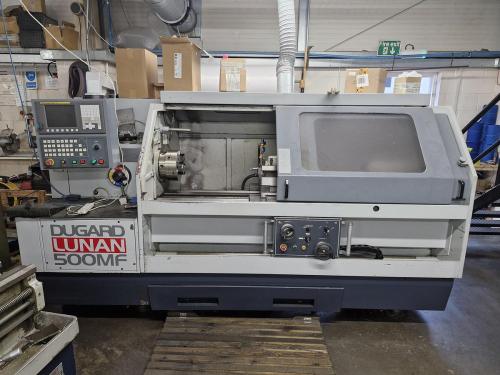

Dugard Lunan 500 MF
Cnc Lathe
 |
|
Equipment and Features
This Used Dugard CNC lathe is ideal for general engineering and medium-duty production environments. Featuring a Fanuc CNC control, inverter-driven spindle, and a programmable electric toolpost, the machine offers excellent flexibility and ease of operation. With generous swing and turning capacity, a rigid gearbox-driven spindle, and comprehensive standard equipment, this machine is well suited for both one-off components and small to medium batch production.
CONTROL
CNC control – Fanuc
Electronic manual turn handwheel
Machine Specification
CAPACITY
Max Swing Over Bed: 500mm
Max Swing Over Cross Slide: 280mm
Max Turned Diameter: 500mm
Max Workpiece Length: 1400mm
Max Turned Length (with electronic handwheel): 1320mm
MAIN SPINDLE
Spindle Nose: D1-8
Spindle Bore: 77mm
Spindle Speed Range: 20 – 1620 RPM
Gearbox: 3-range gearbox
Main Spindle Motor Output: 7.5kW
FEEDS & TRAVERSE
Rapid Traverse X-axis: 6 m/min
Rapid Traverse Z-axis: 8 m/min
TOOLING
4-position programmable electric toolpost
Tool Size: 25 x 25mm
TAILSTOCK
Tailstock included: Yes
Quill Diameter: 75mm
Morse Taper: MT5
Quill Travel: 150mm
STANDARD EQUIPMENT
2-range gearbox (400MF)
3-range gearbox (500MF)
200mm 3-jaw chuck (400MF)
305mm 3-jaw chuck (500MF)
4-position electronic toolpost
Manual tailstock
Coolant system and machine lighting
MACHINE SIZE
Machine Weight: 3100 kg
Dimensions (L x W x H): 3000 x 1370 x 1700mm
POA
