Xyz SLX 355

Cnc Lathe

Machine Summary Machine Ref: 4861 Manufacturer: Xyz Model: SLX 355 Description: Semi Cnc Teach Lathe Year 2013 Electrics: 3 Year: 2013 Price: £0.00 Contact us about this Machine

Equipment and Features

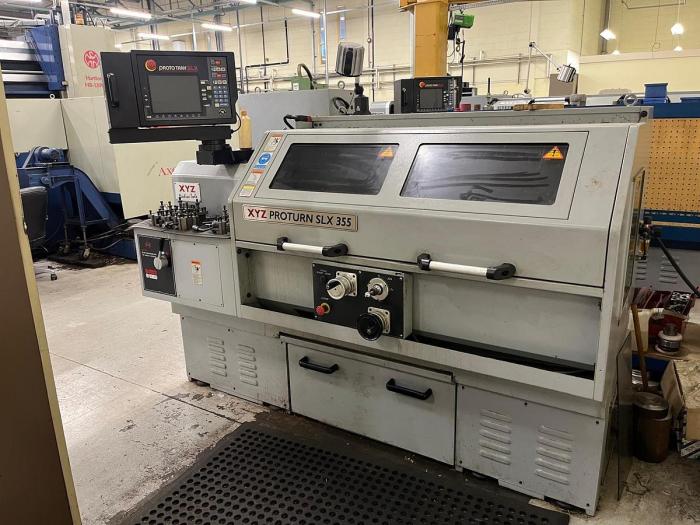

This 2013 built & supplied XYZ SLX 355 x 1000 CNC / Manual lathe is offered for sale with ProTrak SLX control, electronic handwheels, Tracking Facility, 3 Jaw chuck, 4 Jaw chuck, quick change tool post, fixed and traveling steadies.

Machine Specification

Swing over bed 360 mm
Swing over cross slides 225 mm
Cross Slide Travel 185 mm
Distance between centres 1000 mm
Maximum Cutting Length 900 mm
Spindle bore 52 mm
Spindle nose D1-6 camlock
Spindle taper MT4 in bush
Spindle motor 5.75 Kw (7.5hp)
Spindle speeds 50-4000 rpm – 2 ranges
Tailstock Travel 150 mm
Tailstock taper MT4
Tailstock diameter 60 mm
Bed Width 300 mm
Footprint L x D x H 2300 x 1250 x 1750 mm
Weight 2600 kg

POA
