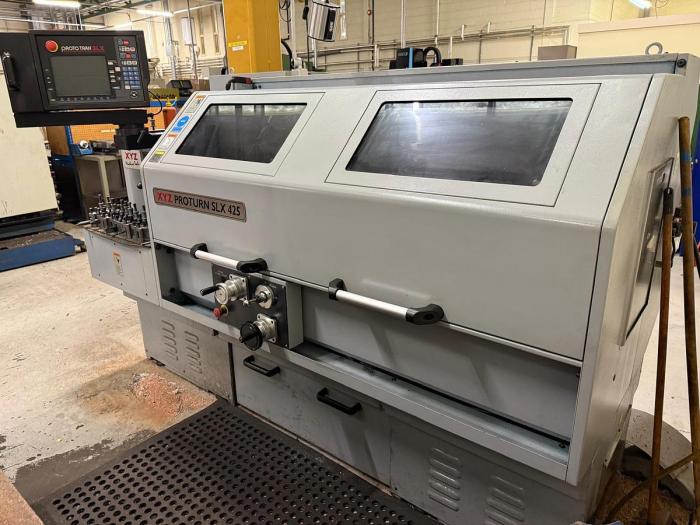

Xyz Proturn SLX 425 x 1250
Cnc Lathe
 |
|
Equipment and Features
A very nice 2013 built XYZ Proturn SLX 425 x 1250 with SLX control, quick change tool post & holders, 3 & 4 jaw chucks, travelling and fixed steadies, electronic handwheels, air rise tailstock and coolant equipment
Machine Specification
Swing over bed 480 mm
Swing in Gap 700 mm
Gap in front of faceplate 175 mm
Swing over cross slides 257 mm
Cross Slide Travel 230 mm
Distance between centres 1250 mm
Maximum Cutting Length 1080 mm
Spindle bore 80 mm
Spindle nose D 1-8 camlock
Spindle taper MT7 in bush
Spindle motor 7.5 Kw (10hp)
Spindle speeds 25-2500 rpm - 3 ranges
Tailstock Travel 160 mm
Tailstock taper MT5
Tailstock diameter 75 mm
Bed Width 370 mm
Footprint L x D x H 2600 x 1250 x 1750 mm
POA
