Xyz Proturn SLX 555 x 1750
Cnc Lathe
 |
|
Equipment and Features

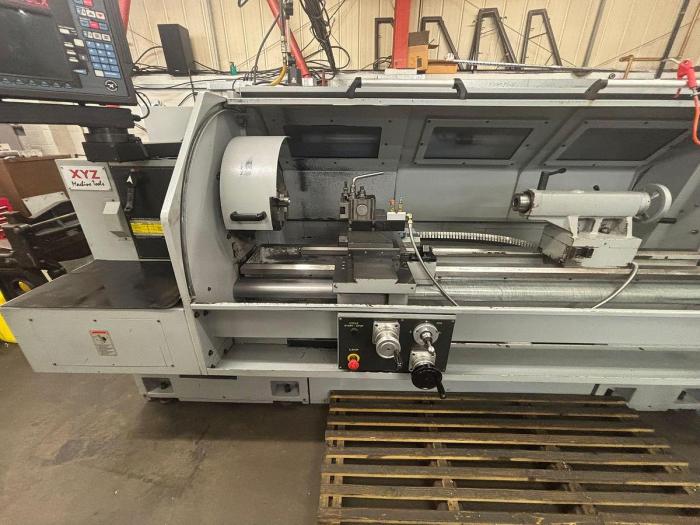

One used XYZ SLX 555 x 1.75M, in superbly well-maintained condition. Fitted with mist extraction.
Rapid Traverse with Joy Stick
3 Jaw Chuck 315mm
Fixed steady
Quick Change Toolpost and 6 Holders
Air Assisted Floating Tailstock, with towing hitch
Interlocked Chuck Guard and Main Guard
Auto Lubrication, Coolant, Worklight
Machine Specification
Swing over bed: 560 mm, Swing in Gap: 935 mm, Gap in front of faceplate: 297 mm (max.)
Swing over cross slides: 350 mm, Cross Slide Travel: 290 mm
Spindle bore 104 mm, Spindle nose D 1-11 camlock
Spindle taper MT7 in bush
Spindle motor 11 Kw (15hp)
Spindle speeds 30-1800 rpm – 2 ranges
Tailstock Travel 200 mm
Tailstock taper MT6
Tailstock diameter 105 mm
Bed Width 500 mm
Footprint L x D x H 5220 x 2150 x 1950 mm
POA
