Haas TL 3
Cnc Lathe
 |
|
Equipment and Features

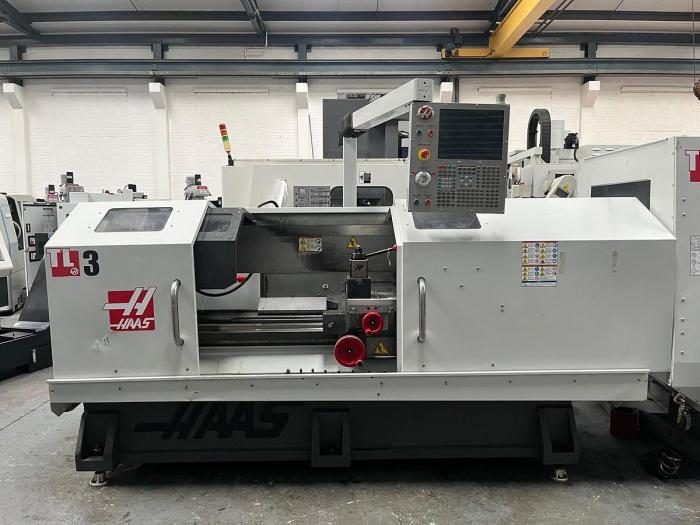

An ex University HAAS TL3 with 12” screen, 3 jaw chuck, quick change tool post, tailstock and coolant equipment. ready for a powered demonstration
Machine Specification
Max Turning length 1524 mm
Max Turning Diameter 508 mm
Swing over bed 508 mm
Swind over Cross Slide 330.2 mm
X-axis Travel 304.8 mm
Z-axis Travel 1524 mm
Spindle taper A2-6
Spindle bore 88.9 mm
Max spindle speed 1800 rpm
Spindle motor power 22.4 kW
Tailstock
Foot Print LxWxH 3073.4 × 1574.8 × 2032.0
Weight 2949.2 kg
POA
