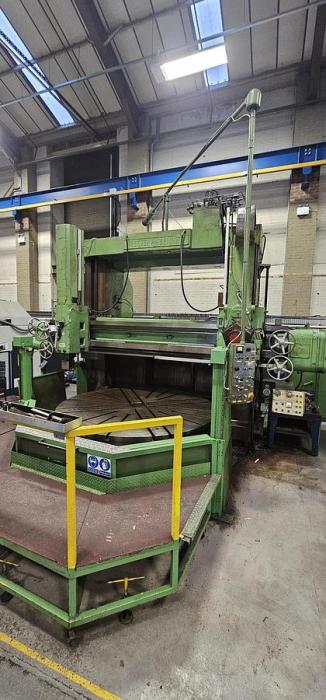

Webster & Bennett 120" DCM

Vertical Boring Machine

Machine Summary Machine Ref: 4904 Manufacturer: Webster & Bennett Model: 120" DCM Description: Double Column Vertical Boring Machine Year 1970 Electrics: 3 Year: Price: £0.00 Contact us about this Machine

Equipment and Features

Machine Specification

Diameter of faceplate 108” 2743 mm

Diameter of work turned with ram 120” 3048 mm

Diameter of work admitted 122” 3100 mm

Height from faceplate to underside of cross-slide 78” max. 1981 mm

Number of feeds 12

Range of feeds .025 - .125 ins/rev.

Number of speeds 12

Range of speeds 2 - 53 rpm

Main motor 50 HP 37 kW

Approximate total weight of machine 100800 lb 45720 kg

Machine complete with :-

Left hand ram slide and Right hand turret slide.

Pendant control.

2 Axis D.R.O. to ram slide.

Dickson Quick Change Toolholder to Turret plus Standard Turning Toolholders and table clamps.

Coolant.


POA
