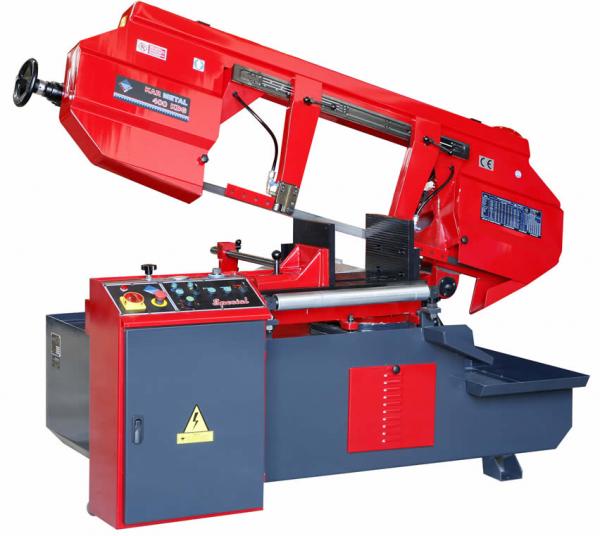

| Equipment and Features: "Click on the picture to enlarge it"
Semi-Automatic Operation
Dimensions: 1400mm x 2400mm x 1200mm
Weight: 1350 Kg
Working Height: 740mm
Blade Size: 4650mm x 34mm x 1.1mm
Coolant, Manual Material Feed,
Hydraulic Bow Lift & Vice,
Fitted with Laser Guide Line,
C / W In-Feed Table: 690mm x 1370mm
(Options: Additioanl Tables Available)
12 Months Parts Only Warranty. | Specifications: Capacity @ 0 degrees:-
400mm Round Bar
400mm Square Bar
400mm x 500mm Rectangular Bar
or 270mm x 550mm Rectangular Bar
Capacity @ 45 degrees:-
350mm Round Bar
350mm Square Bar
350mm x 350mm Rectangular Bar
Capacity @ 60 degrees:-
250mm Round Bar
250mm Square Bar
250mm x 350mm Rectangular Bar
Motor: 4 Kw 1400 rpm
Cutting Speeds: 25 - 90 M/Min
Swivel Frame Rapid Mitre Facility,
Heavy Duty Construction. |
