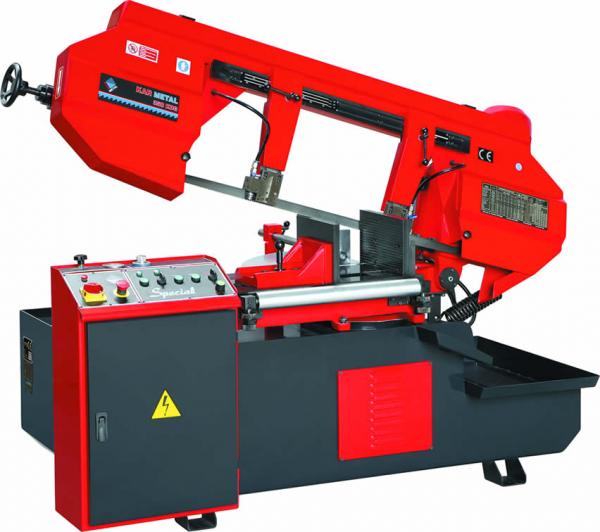

| Equipment and Features: "Click on the picture to enlarge it"
Semi-Automatic Operation,
Dimensions: 1400mm x 2200mm x 1200mm
Weight: 1250 Kg
Work Height: 740mm
Blade Size: 4350mm x 34mm x 1.1mm
Coolant, Manual Material Feed,
Hydraulic Powered Bow Lift & Vice,
Fitted with Laser Guide Line,
C / W In-Feed Table: 690mm x 1370mm
(Options: Additional Tables Available)
12 Months Parts Only Warranty | Specifications: Capacity @ 0 degrees:-
350mm Round Bar
350mm Square Bar
300mm x 500mm Rectangular Bar
or 230mm x 550mm
Capacity @ 45 degress:-
350mm Round Bar
320mm Square Bar
250mm x 340mm Rectangular Bar
Capacity @ 60 degrees:-
250mm Round Bar
220mm Square Bar
180mm x 240mm Rectangular Bar
Motor: 4 Kw 1400 rpm
Cutting Speed: 25 - 90 M / Min (inverter)
Swivel Frame Rapid Mitre Facility,
Heavy Duty Construction. |
