Details for machine 73,
Stock No:73
Manufacturer:Ajax
Description:(New) Ajax Ace Vertical Machining Centre
Model:Spark
Year:2010
Electrics:3 Phase
Price(Sterling):£.00
Equipment and Features:

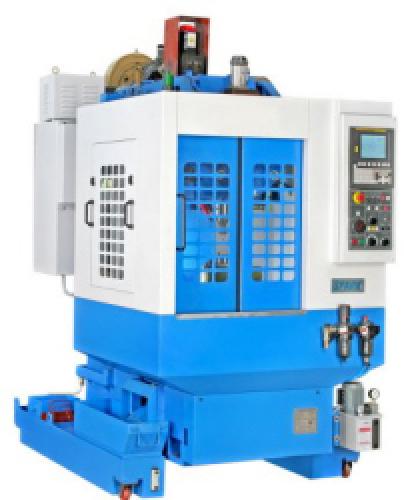

"Click on the picture to enlarge it"

Built on cast columns & bases to eliminate vibration & enable a better cutting finish. Rigid tapping is standard, as is pneumatic counter-balance. On the random tool-changer, an air blast is used to clean the spindle prior to the next one entering, air blast is also used to clean the work piece while machining.

TO REQUEST A QUOTATION PLEASE EMAIL YOUR NAME & COMPANY DETAILS & THE AXAX MACHINE MODEL NUMBER - THANK YOU.

Specifications:

Table Size: 500mm x 330mm
`X` Travel: 300mm
`Y` Travel: 250mm
`Z` Travel: 250mm
Rapid Speed M/Min: 30 & 25 in `Z`
Main Motor Power (Kw) 3.7 / 5.5
Tool Changer: 12
Max. Table Loading (Kg) 150
Machine Weight (Kg) 2,200
CNC Control: Fanuc Oi MC Mate
Motor Servo: AC Servo
Spindle BT 30
Spindle Speeds: (RPM) 6,000 or 8,000
