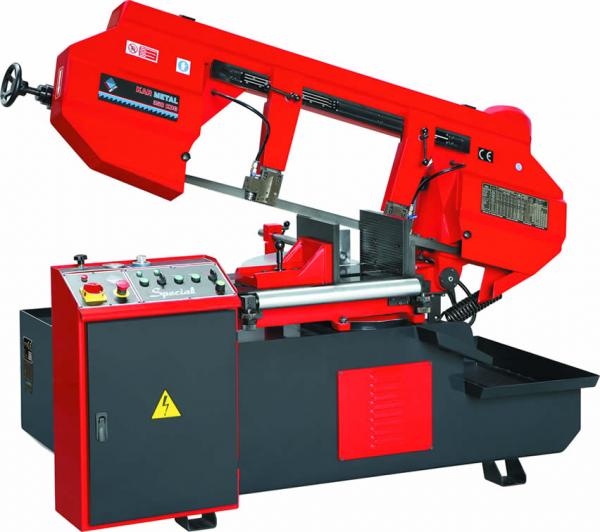

| Equipment and Features: "Click on the picture to enlarge it"
Semi-Automatic Operation,
Dimensions: 1300mm x 1950mm x 1300mm
Weight: 935 Kg
Working Height: 740mm
Blade Size: 3850mm x 27mm x 0.9mm
Coolant, Manual Material Feed,
Hydraulic Powered Bow Lift & Vice,
Fitted with Lase Guide Line,
C / W In-Feed Table: 540mm x 1370mm
(Options: Additional Tables Available)
12 Months Parts Only Warranty | Specifications: Capacity @ 0 degrees:-
300mm Round Bar
300mm Square Bar
3000mm x 430mm Rectangular Bar
Capacity @ 45 degrees:-
280mm Round Bar
260mm Square Bar
170mm x 300mm Rectangular Bar
Capacity @ 60 degrees:-
170mm Round Bar
170mm Square Bar
170mm x 170mm Rectangular Bar
Motor: 2.2 Kw 1400 rpm
Cutting Speed: 25 - 90 M / Min (inverter)
Swivel Frame Mitre Facility,
Heavy Duty Construction. |
