Specifications:

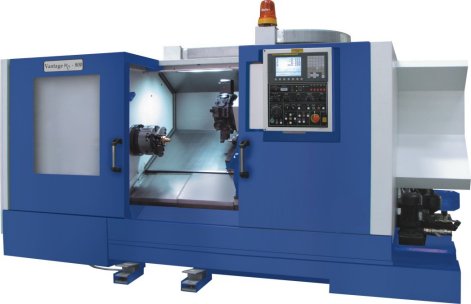

Slant Bed Production Lathe
Top Fanuc Oi TV CNC Control
Max.Dia. Turned: 580mm
Max. Turnded Length: 800mm
Chuck Size: 250mm Dia.
Centres: N/A
Main Spindle Bore: 63mm Dia.
Bar-Capacity: 51mm Dia.
Variable Speed Range: 50 to 4000 rpm CSS,
Working Feeds: 0 to 10,000mm/min
Rapid Feeds: 15,000mm/min
Tail-Stock Dia.N/A
Turret Type: Pragati VDI 40 Radial
Auto Bi-Directional Turrets
No. Of Stations: 12
Max.Dia. Of Boring Bar: 40mm
Tool Cross Section: 25mm x 25mm
Main Motor Cont. 30 mins: 11/15 Kw

Turret Power: 3.7 / 5.5 Kw
Sub-Spindle Motor Power: 5.5 / 7.5 Kw
Sub Spindle Stroke: 720mm

Options:-
Bar Feed Systems
Live Tooling Option with `C` Axis
`Y` Axis
Sub-Spindle
Cad Cam
